Internal External Type Gauge Carrier For Reading Tubing

  • 1
  • 2

Brand Name : ZZ Top

Model Number : 11001 5" 15000psi

Certification : ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10sets/month

Delivery Time : 25days

Packaging Details : Plywood carton

Body Material : Alloy steel/Super 13Cr/Inconel

Type : Internal or External

Gauge qty : 1-4pcs

Application : Reading tubing & Annulus Pressure

Working Pressure : 15000psi

Working Temperature : 400F

Thread Connection : EUE/IF/CAS/VAM/PH6/XT39

Gauge Size : Max. OD1.27"

Contact Now

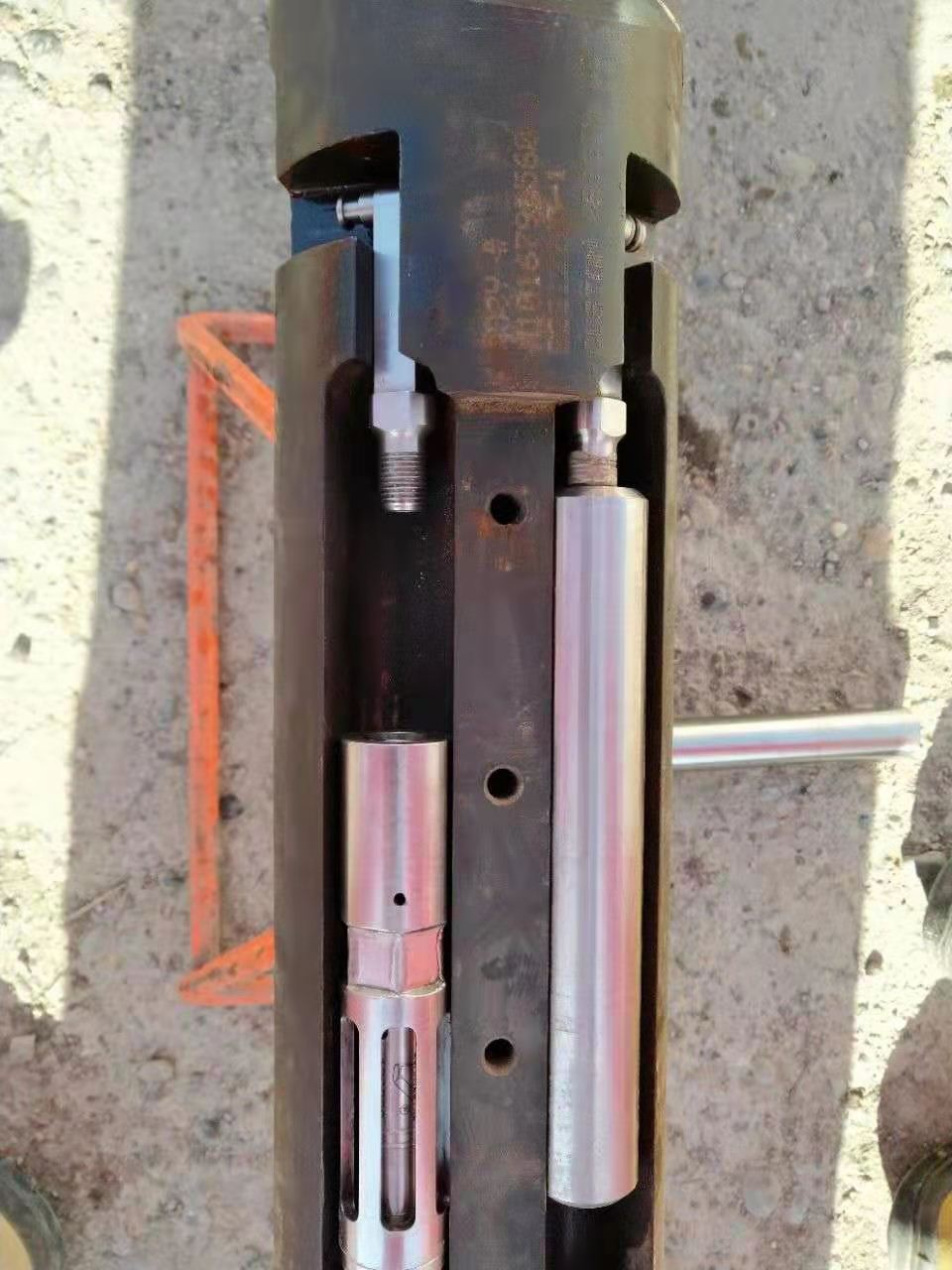

Internal/External Type Gauge Carrier c/w 4 gauges reading tubing & Annulus Pressure

The Gauge carriers are used to carry pressure or tempeature gauges in the flow steam to monitor downhole conditions while maintaining a full opening through the tools, base on different design the gauges can read tubing or Annlus data.

The internal type gauge carrier normally is designed for holding small size gauges due to the carrier OD strict to run in hole. The gauges will be fully protected by carrier house, 1 to 4 gauges can be hold and allow to read tubing or annlus pressure in one run.

The external type gauge carrier is designed for holding large size gauges upto 1.27"OD. Normally external gauge carriers that have an offset OD and can carry two or four max.65" electronic or mechanical gauges in the standard 5" OD carrier. The OD of the carrier is offset from the ID. The ID of the tool is concentric with the tubing string so that fullbore is always maintained for wireline tool or Drop-bar passage.

The connection from gauges to carrier is various, can be from Pressure Block with ports torward tubing or annulus, or with extra adapter or crossvers with different box-pin connection, those adapters can be solid type or quick union, moreover special T type adapters are available which is more reliable when tubing pressure is high.

Specification:

Size 5” (127.5mm)
Eccentric OD 137.5mm
ID 57mm
Length 3368mm
Working Pressure 105Mpa(15000psi)
Internal Pressure Strength 196Mpa
External Pressure Strength 177Mpa
Tensile Strength 1866KN
Eccentric Size 10mm
Memory Gauge OD 1.27”
Memory Gauge Qty 4pcs
Slot Length 36”
Slot Qty 4
Torque Strength 43.4KN.M
Working Temperature -29oC~204oC
Service H2S NACE MR0175(>175F)
Connection Thread 3 1/2”IF / 3 1/2“ EUE / 3 7/8” CAS

Size 5” (127.5mm)
ID 57mm
Length 1223mm
Working Pressure 105Mpa(15000psi)
Internal Pressure Strength 163Mpa
External Pressure Strength 149Mpa
Tensile Strength 4354KN
Eccentric Size 0mm
Memory Gauge OD 0.75”
Memory Gauge Qty 4pcs
Slot Length 36”
Slot Qty 4
Torque Strength 85KN.M
Working Temperature -29oC~204oC
Service H2S NACE MR0175(>175F)
Connection Thread 3 1/2”IF / 3 1/2“ EUE / 3 7/8” CAS
